CHUCK™
Crews failing to understand the physics of bolted flange joints will produce more leak-prone assemblies. Hex Technology’s (a VSP Technologies Company) CHUCK bolt reading awareness indicator (brain) reduces your site’s risk of leaks by showing crew members in vivid detail how their assembly practices can positively (or negatively) affect flange make up with CHUCK, essential but-confusing aspects like elastic interaction, bolt scatter, and the effects of alignment and lubrication – can be immediately seen and easily understood.

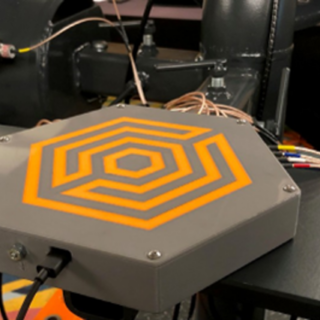

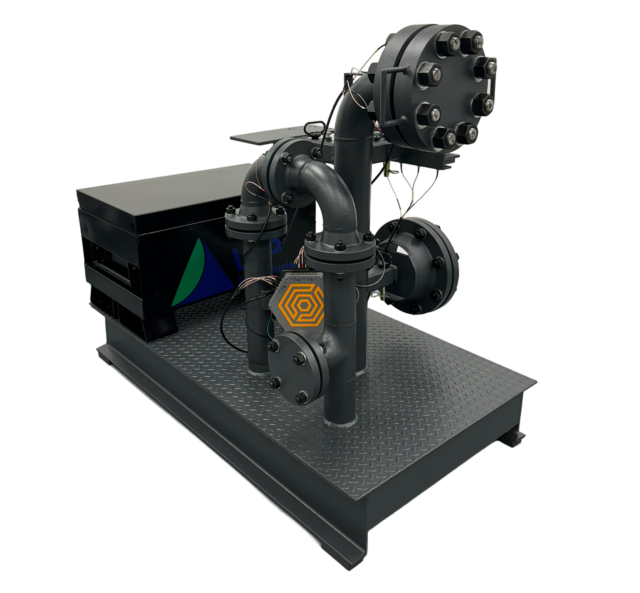

The CHUCK brain pairs with instrumented bolts from 5⁄8” to 1-¼” in diameter to provide real-time readings on achieved bolt loads. The unit can be applied to any appropriately sized flange from 4 bolt to 16 bolt. VSP Technologies provides fabrication specs for a “body” of demonstration flanges, however, users are free to “choose their own adventure” and pair the studs with any configuration they like.
SUPPORTS YOUR SITE’S BOLT
CHUCK pairs with Rota Bolt load indicating fasteners created by James Walker. CHUCK is compatible with bolts sized5⁄8”, ¾”, 7⁄8”, 1”, 1-1⁄8” or 1-¼” in diameter bolts, which account for more than 90% of fasteners used on most sites.
WIRELESS MADE EASY

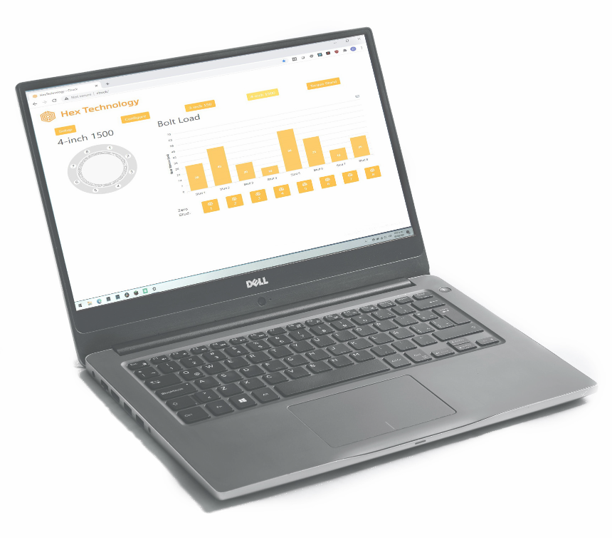

CHUCK’s interface is accessible locally and wirelessly through Wi-Fi. Any laptop or smartphone can log in and see bolting data in real-time. There’s no need to call IT. CHUCK is a plug-and-play solution—no network connection required.
CHOOSE YOUR ADVENTURE

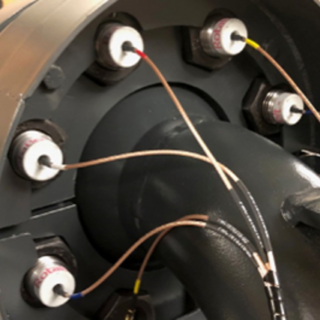

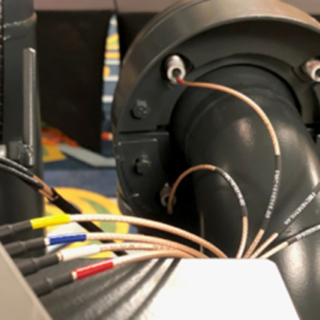

Connect to bolts through RG-316 coaxial with embedded SMB connectors. Configure CHUCK to match up with the most common flanges on your site.
Seeing is believing. CHUCK is a valuable teaching and testing tool because it presents bolt load readings in vivid detail. Watch values increase with applied torque or decrease due to elastic interaction or bolt relaxation.
Users can easily navigate through intuitive menus and quickly configure bolt and flange settings.
Available to purchase and use as a hands‑on training tool for your crew.
