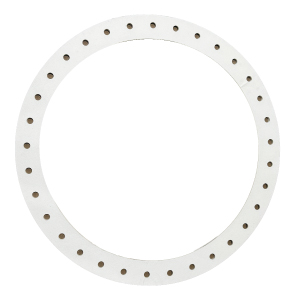

Metal Reinforced Gasket

Ceramic fiber gaskets have historically been used for high-temperature applications; however, the flimsy nature of the material makes handling and installation challenging. VSP CeraMica gaskets incorporate a metalreinforced, high-temperature resistant, micabased material laminated with ceramic to overcome the handleability issues. These gaskets are compatible with SO2 and SO3 concentrations typical in flue gas applications.

Advantages

• Any shape, standard and custom
  • One-piece construction
  • INTRA-LOCK™ joints for large diameter gaskets
• Rigid core Easier installation
  • Easier installation
• High-temperature sealing layers (<2,000 °F)
• Gasket factors (m=2.5, Y=400 psi)
• Highly compressible outer layer improves sealing
• Broad spectrum chemical compatibility
